TAMPÕES PARA CARROCERIA

Your selection
  • remove selection
  • M 6
  • M 8
  • M 10
  • M 12
  • M 16
  • M 20
  • M 25
  • M 32
Your selection
  • remove selection
  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
  • 25
  • 32
Your selection
  • remove selection
  • 1 - 3,0
Your selection
  • remove selection
  • 12,0
  • 14,0
  • 16,0
  • 18,5
  • 23,0
  • 27,0
  • 32,5
  • 39,5
Your selection
  • remove selection
  • 11,5
  • 12,0
  • 12,5
  • 13,0
Your selection
  • remove selection
  • 8,5

Productfilter

previous next
technical drawing
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Download the datasheeht as PDF
Article
No.
Nominal
size
Hole Ø
Panel
thickness
Total Ø
Total
height
Installation
dimension
Material /
Color
Select
sample
1500

M 6

6

1 - 3,0

12,0

11,5

8,5
EB

1501

M 8

8

1 - 3,0

14,0

11,5

8,5
EB

1502

M 10

10

1 - 3,0

16,0

12,0

8,5
EB

1503

M 12

12

1 - 3,0

18,5

12,0

8,5
EB

1504

M 16

16

1 - 3,0

23,0

12,5

8,5
EB

1505

M 20

20

1 - 3,0

27,0

13,0

8,5
EB

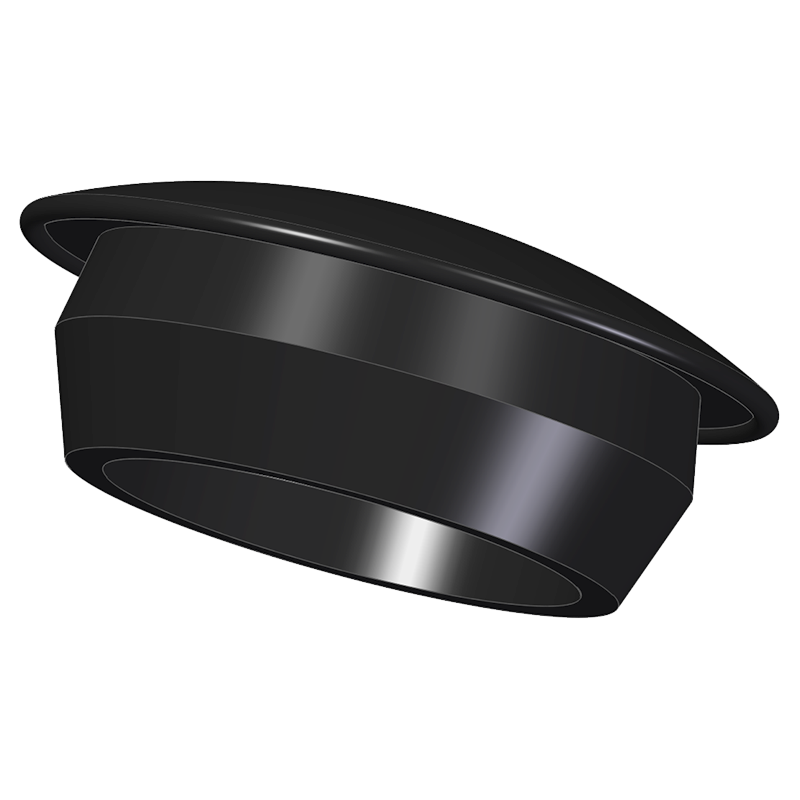

1506

M 25

25

1 - 3,0

32,5

13,0

8,5
EB

1507

M 32

32

1 - 3,0

39,5

13,0

8,5
EB

  • EB = EPDM, black
